Product Overview
The Nonin PalmSAT 2500 is a compact, handheld pulse oximeter designed for precise blood oxygen saturation (SpO2) and pulse rate monitoring. Trusted by healthcare professionals in hospitals, EMS, and field settings, this U.S. Military-certified device delivers reliable performance. Weighing only 7.4 oz with an 80-hour battery life, it’s ideal for portable use across neonates, infants, and adults.
Equipped with Nonin’s PureLight® sensors and PureSAT® signal processing, the PalmSAT 2500 ensures accurate readings in low perfusion or motion conditions. Its tricolor LED display provides pulse quality feedback, and 72-hour data storage supports trend analysis via nVISION software. Made in the USA, it’s identical to the Respironics 920M but more cost-effective.
Nonin 2500 Literature
Key Features
- High Accuracy: SpO2 (0–100%, ±2 digits) and pulse rate (18–321 BPM) with PureSAT® technology for reliable readings.
- Portable Design: Compact (7.0 cm W x 13.8 cm H x 3.2 cm D) and lightweight (7.4 oz).

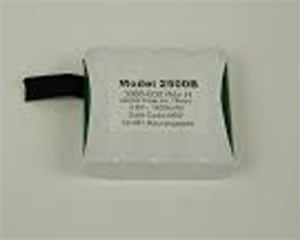

- Extended Battery Life: 80 hours on 4 AA batteries or 45 hours with optional NiMH rechargeable pack.
- Data Storage: 72 hours of SpO2 and pulse rate data, downloadable via Nonin 1000USB Adapter.
- Military Certified:Airworthy for U.S. Army and Air Force, ideal for extreme environments.
- Tricolor LED Display:Green, yellow, red indicators for pulse quality, blinking at pulse rate.
- Versatile Sensors: Compatible with Nonin PureLight® sensors (e.g., 8000AA, 8000Q2). View sensors.
- Smart Averaging: Adjusts averaging time for fast-paced care environments.
- Power Options: 4 AA batteries, NiMH pack, or AC power with 2500C-UNIV Charger.
- Durable: IPX2-rated for ingress protection, robust for field use.
- Warranty: 3-year manufacturer warranty.
Note: Need alarms? Explore the Nonin PalmSAT 2500A with Alarms.
Technical Specifications
| Parameter | Details |
|---|---|
| Dimensions | 7.0 cm W x 13.8 cm H x 3.2 cm D (2.8" x 5.4" x 1.3") |
| Weight | 210 g (7.4 oz) with alkaline batteries |
| SpO2 Range | 0–100% |
| Pulse Rate Range | 18–321 BPM |
| SpO2 Accuracy (No Motion) | Finger Clip: ±2 digits; Flex: ±3 digits |
| SpO2 Accuracy (Motion) | Finger Clip: ±3 digits; Flex: ±3 digits |
| SpO2 Accuracy (Low Perfusion) | Finger Clip: ±3 digits; Flex, Flexi-Form® II: ±3–4 digits |
| Pulse Rate Accuracy (No Motion) | ±3 digits (18–300 BPM) |
| Wavelengths & Power | Red: 660 nm @ 0.8 mW; Infrared: 910 nm @ 1.2 mW |
| Power Requirements | 4 AA batteries (80 hours) or NiMH pack (45 hours) |
| Operating Altitude | Up to 12,000 m (40,000 ft) |
| Hyperbaric Pressure | Up to 4 atmospheres |
| Ingress Protection | IPX2 |
| Protection Type | Type BF-Applied Part |
| Warranty | 3 years |
What’s Included
- Nonin PalmSAT 2500 Pulse Oximeter
- Choice of PureLight® Sensor (select sensor from options list)
- Four AA Alkaline Batteries
- Operator’s Manual
Why Choose the Nonin PalmSAT 2500?
Data Management: Stores 72 hours of data in an endless loop, downloadable with the Nonin 1000USB Adapter using nVISION software.
Applications: Ideal for hospitals, EMS, urgent care, sleep studies, dental, and home care settings.
Pulse Quality Indicator:Tricolor LED (green, yellow, red) blinks at pulse rate, indicating signal quality without needing a plethysmograph.
